612AND_30_V_FOR_FM_TUNER

Published:2009/7/17 2:39:00 Author:Jessie | From:SeekIC

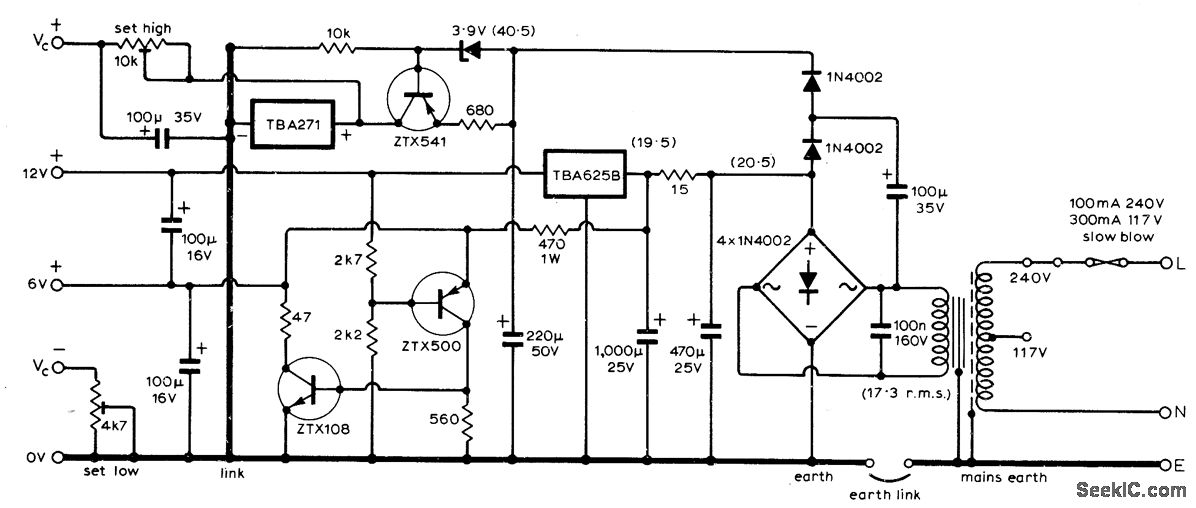

Provides regulated 30 V for voltage-controlled varicap tuning diodes, 12 V for other circuits of tuner, and optional 6 V for stereo decoder. Uses SGS IC regulators. - L. Nelson-Jones, F.M. Tuner Design-Two Years Later, Wireless World, June 1973, p 271-275.
