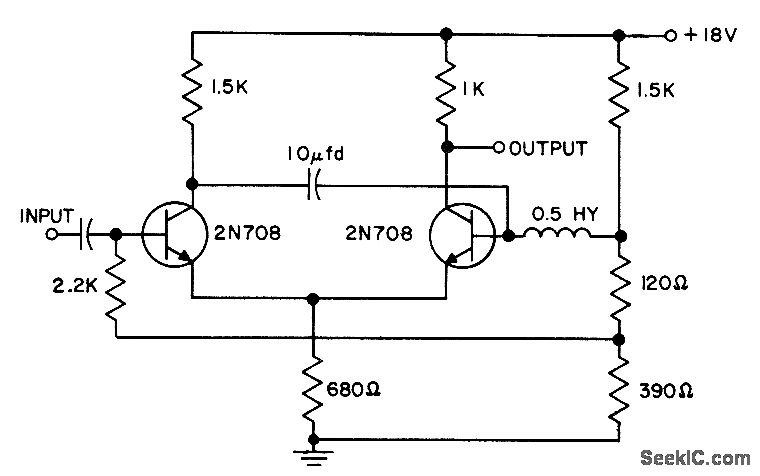

600_MICROSEC_OUTPUT_PULSE_MONO

Published:2009/7/16 22:23:00 Author:Jessie | From:SeekIC

Similar to fiip-flop except that one cross-coupling network permits a-c coupling only. Flip-flop can therefore remain in its unstable state only until reactive components discharge. Use of inductor in place of capacitor for timing gives much better pulse width stability at high temperatures. Operating range is -55 to 71 ℃.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 201.
