5_volt_regulator

Published:2009/7/20 5:27:00 Author:Jessie | From:SeekIC

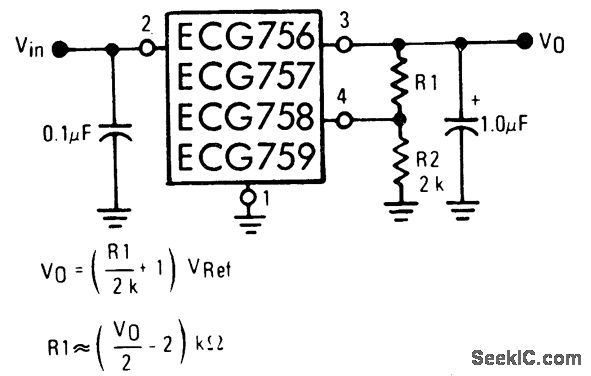

5-volt regulator. Input voltage should not exceed 22 volts for the ECG758 and ECG759 or 38 volts for the ECG756 and ECG757. All of these units are 4-lead packages (courtesy GTE Sylvania Incorporated).
