5_V_logic_regulator_with_electronic_shutdown

Published:2009/7/23 23:12:00 Author:Jessie | From:SeekIC

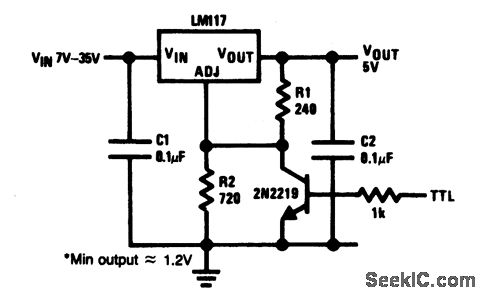

This circuit is suitable for 5-V logic applications and can be shut down electronically with a TTL-level signal.
