5 VOLT MOMENTARY OPERATION TOUCH SWITCH

Published:2012/9/5 21:02:00 Author:Ecco | Keyword: 5 VOLT, MOMENTARY OPERATION , TOUCH SWITCH | From:SeekIC

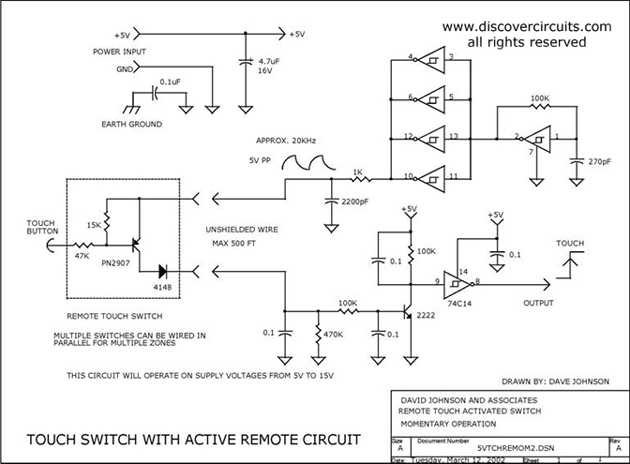

This simple circuit uses a single IC to form a nice touch switch circuit. A single transistor forms the remote active switch sensor. Multiple switches can be wired in parallel. The switch circuit can be located about 500 feet from the control circuit. Source: discovercircuits
