5_A_steyo_down_PWM_regulator

Published:2009/7/24 1:55:00 Author:Jessie | From:SeekIC

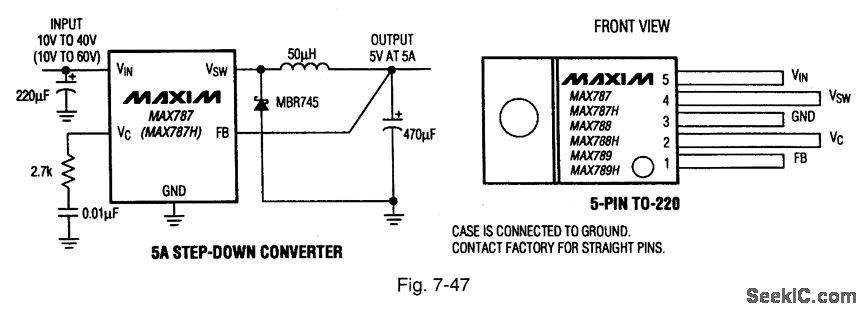

Figure 7-47 shows the MAX787 connected to provide an output of +5 V at 5 A, with an input of 10 V to 40 V. The MAX787/88/89 provide 5-A outputs at 5 V, 3.3 V, and 3 V, respectively. Quiescent current is 8.5 mA. The ICs are also available in TO-3 packages. MAXIM NEW RELEASES DATA Book, 1994, P. 4-245.
