5_A_positive_adjustable_current_regulator

Published:2009/7/23 23:51:00 Author:Jessie | From:SeekIC

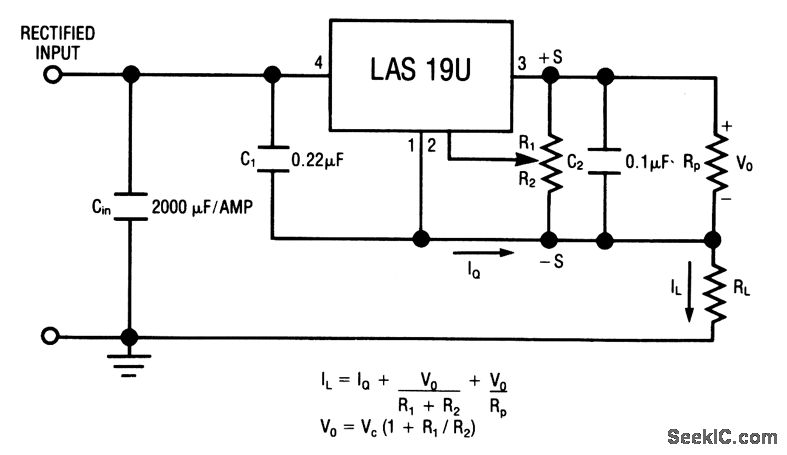

This circuit uses the LAS19U voltage－regulator IC (Fig. 7-47) as an adjustable-current regulator. Characteristics are shown in Fig. 7-46B, 7-46C and 7-46D.
