Published:2009/7/19 22:46:00 Author:Jessie | From:SeekIC

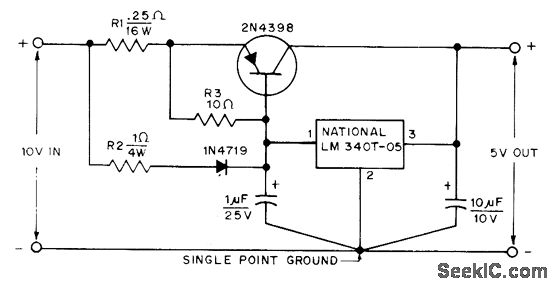

Current-sharing design provides short-circuit protection, safe-operating-area protection, and thermal shutdown. Typical load regulation is 1.4%.-W. R. Calbo, A High-Cur-rent, Low-Voltage Regulator for TTL Circuits, QST, Sept. 1975, p 44
