5V_AT_10A_WITH_CURRENT_LIMITING

Published:2009/7/19 20:13:00 Author:Jessie | From:SeekIC

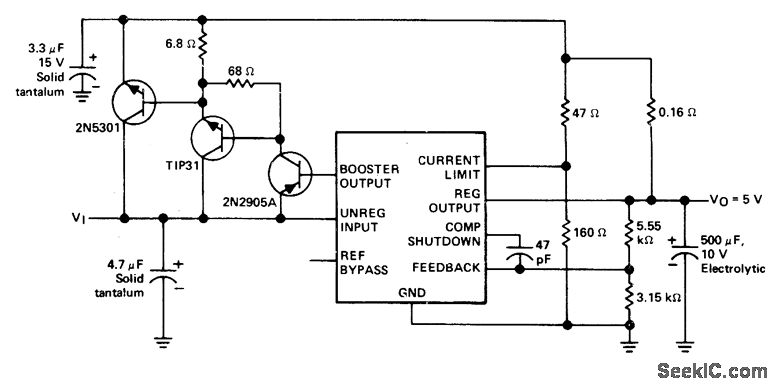

Combination of three transistors and SN52105 or SN72305 regulator provides foldback current limiting for overload protection. Input voltage can be up to 40 V greater than 5-V output. Load regulation is about 0.1%, and input regulation is 0.1%/V.Regulators are interchangeable with LM105 and LM305 respectively.- The Linear and Interface Circuits Data Book for Design Engineers, Texas Instruments, Dallas, TX, 1973, p 5-9.
