50_V_PUSH_PULL_PULSES_FOR_DIODE_BRIDGE

Published:2009/7/23 21:35:00 Author:Jessie | From:SeekIC

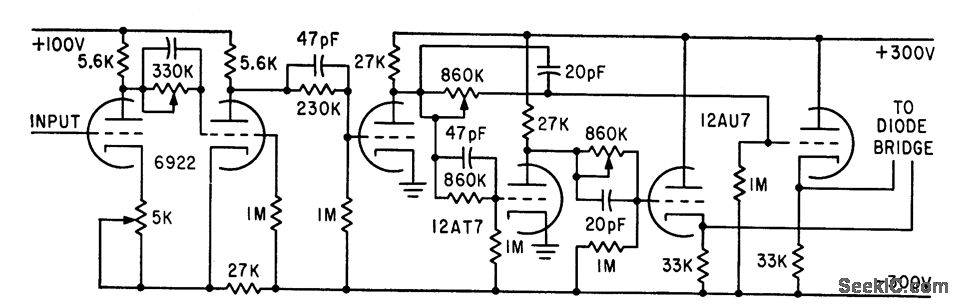

Schmitt trigger acts as comparator about 0 v and provides input to two pulse amplifiers. Cathode followers furnish push-pull output at low impedance necessary to drive a 6AL5 diode bridge. Permits two sampled-hold circuits to be run as memory pair in analog computer.-T. A. Brubaker, Precision Analog Memory has Extended Frequency Response, Electronics, 34:39, p 141-143.
