3_TO_15_V_dc_dc_CONVERTER

Published:2009/7/16 1:37:00 Author:Jessie | From:SeekIC

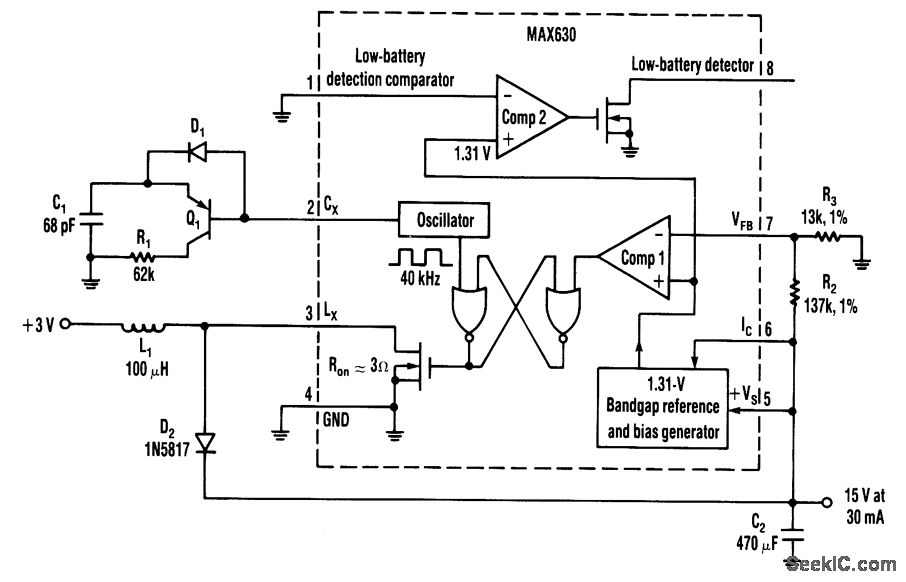

This circuit supplies 15 V at 30 mA from a 3-V source. The MAX630 IC is dc-dc converter, Q1 and D1 modify the duty cycle from 50% to 80% to optimize the output power.
