3_A_SWITCHING_REGULATOR

Published:2009/7/16 20:57:00 Author:Jessie | From:SeekIC

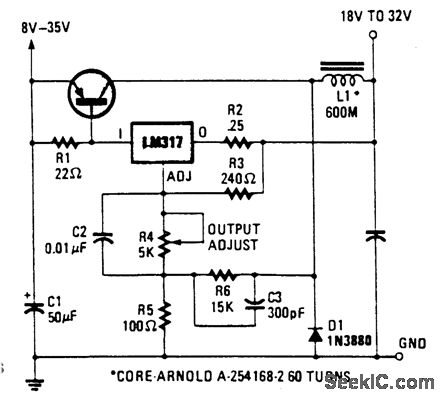

This switching regulator uses an LM317 and a pnp switching transistor of 3-to 5-A rating. L1 is wound on a commercially available core.
