320_V_AT_60_MA

Published:2009/7/20 21:49:00 Author:Jessie | From:SeekIC

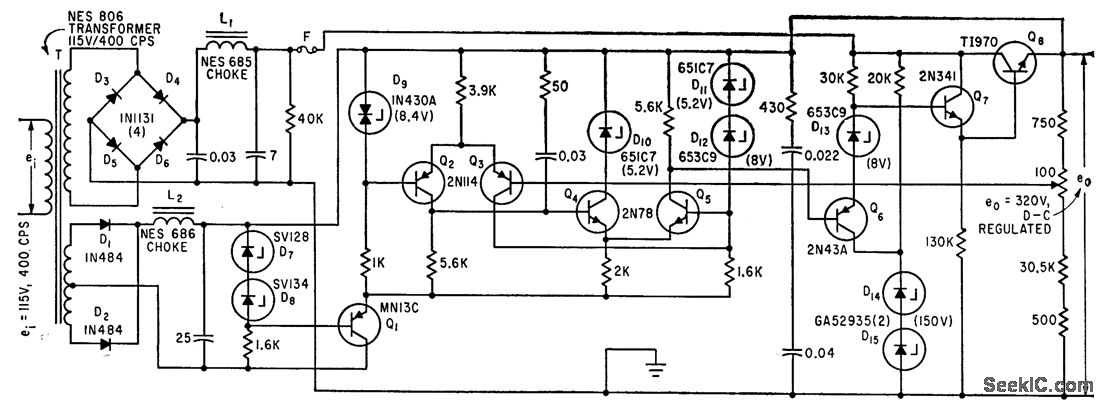

Silicon diodes in full-wave bridge feed seven-transistor regulator. Temperature-compensated silicon-junction zenet diode is basic reference element. Output is constant within 50 my, for use with digital-analog converter.-N. Aron, Precise Converter takes Current Analog of Digital voltage Pulses, Electronics, 35:32, p 68-71.
