30_MHz_IF_PREAMP

Published:2009/7/17 2:47:00 Author:Jessie | From:SeekIC

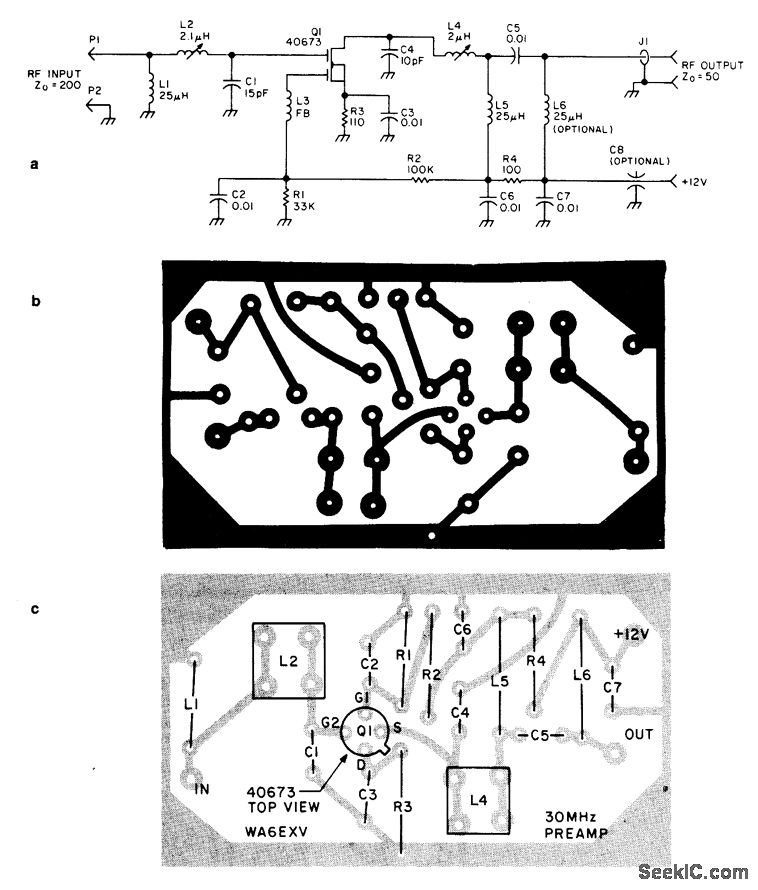

This preamp for 30 MHz is useful for IF applications used in microwave work, etc. A 40673 MOSFET is used and typically the gain at 30 MHz will be 20 to 25 dB.
