2_A_positive_fixed_current_regulator

Published:2009/7/23 23:34:00 Author:Jessie | From:SeekIC

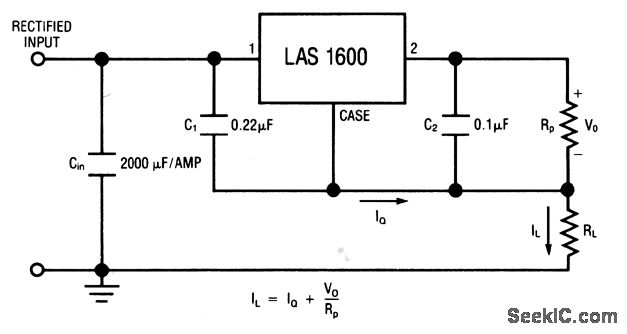

This circuit uses the LAS1600 series voltage regulator (Fig. 7-37A) as a fixed-current regulator. Characteristics are shown in Fig. 7-37B, 7-37C, and 7-37D.
