2_A_positive_adjustable_current_regulator

Published:2009/7/23 23:39:00 Author:Jessie | From:SeekIC

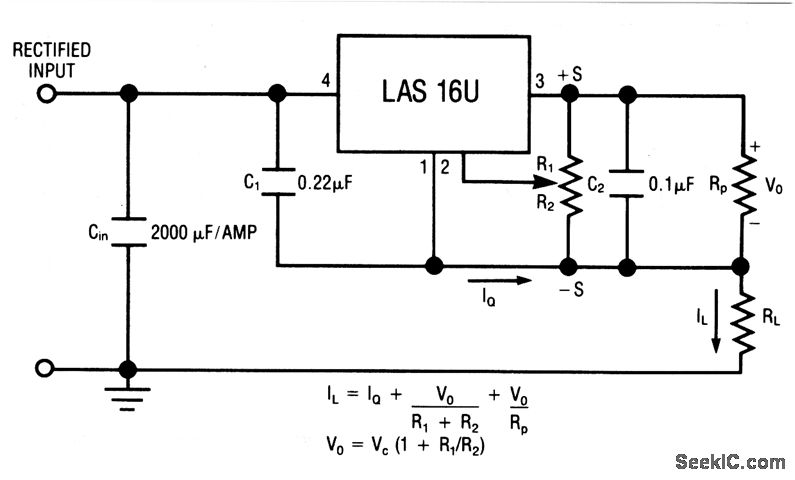

This circuit uses the LAS16U voltage-regulator IC (Fig. 7-38) as an adjustable-current regulator. Characteristics are shown in Fig. 7-37B, 7-37C, and 7-37D.
