24_V_preset_output_controller

Published:2009/7/24 3:22:00 Author:Jessie | From:SeekIC

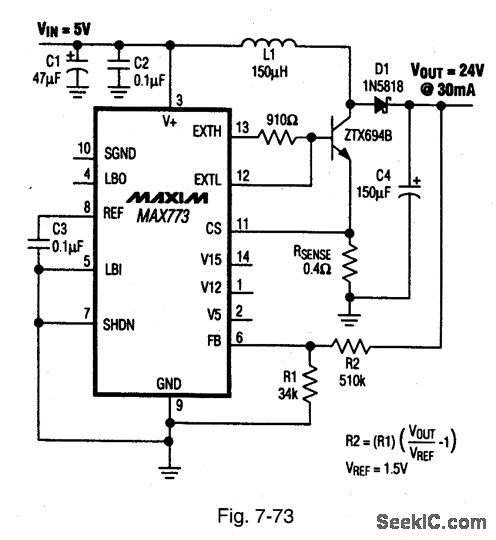

Figure 7-73 shows a MAX773 connected to provide 24-V output at 30 mA, with a 5-V input. See Fig. 7-69 for component suppliers. MAXIM NEW RELEASES DATA Book, 1995, P. 4-151.
