20_METER_DIRECT_CONVERSION_CW_SSB

Published:2009/7/16 4:53:00 Author:Jessie | From:SeekIC

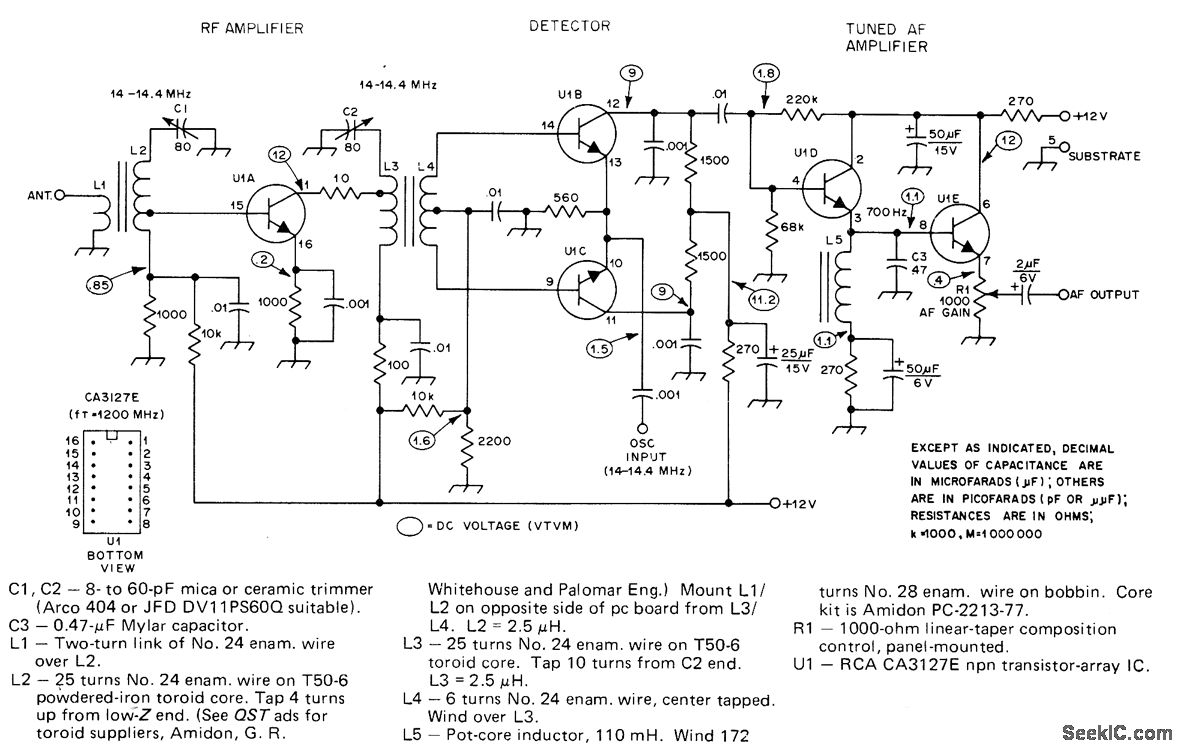

Simple direct-conversion or synchrodyne receiver uses RCA CA3127E five-transistor array. Product detector follows 14-MHz RF stage. Low drain makes receiver ideal for battery operation, but circuit has no AGC. AF output will drive headphones adequately for strong 20-meter signals, but not loudspeaker. Local-oscillator energy at 14-14.4 MHz for product detector at 1.5－2 VRMS must be furnished by external BFO.－D. DeMaw, Understanding Linear ICs, QST Jan. 1977, p 11-15.
