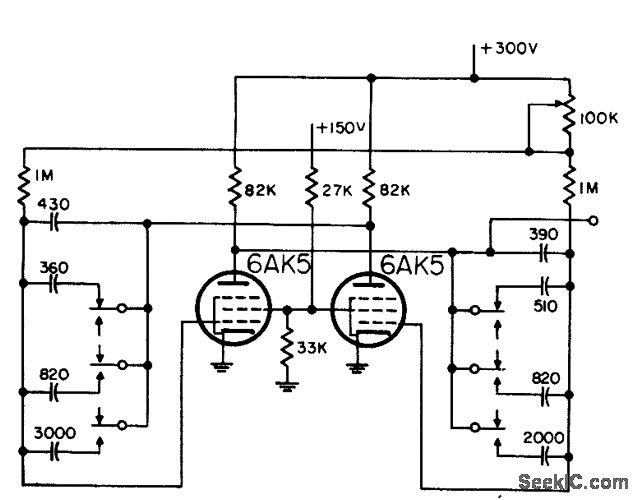

200_400_AND_800_PPS_PRF_GENERATOR

Published:2009/7/16 10:18:00 Author:Jessie | From:SeekIC

Used in airborne radar. Frequency stability is 3% for 200 pps and 8% for higher frequencies, One drawback of mvbr here is that output impedance equals plate load resistance, which must be relatively high for good frequency stability.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N5-1.
