2000_SEC_COUNTER

Published:2009/7/24 1:50:00 Author:Jessie | From:SeekIC

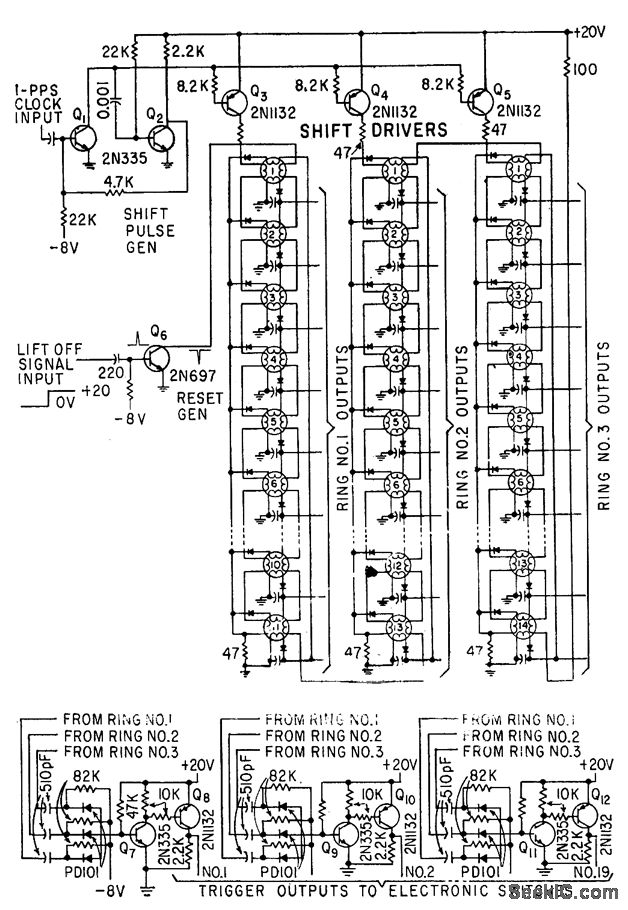

Up to 20 and gate in-puts can be supplied by each closed ring element. 1-pps clock triggers operate 2,000-sec counter pulse generator using unique magnetic shift register elements.-J. H. Porter, Miniaturized Autopilot System for Missiles, Electronics, 33:43, p 60-64.
