The regulator: DC-DC circuit and power supply monitor pin and its main features LM196/396

Published:2011/8/29 2:37:00 Author:Seven | Keyword: regulator, power supply, monitor pin

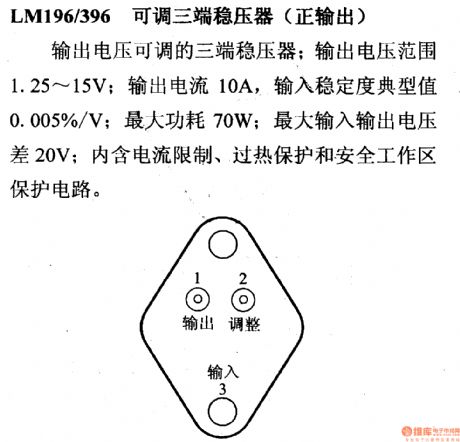

LM196/396--the adjustable 3-terminal stabilizer (positive output)This is a 3-terminal stabilizer with a fixed output voltage; the output voltage is 1.25~15V; the output current is 10A, the input stability typical value is 0.005%/V; the max power consumption is 70w; the max input-output voltage difference is 20V; it contains the current limitation, overheat protection and secure working area protection circuit.   (View)

View full Circuit Diagram | Comments | Reading(745)

The regulator: DC-DC circuit and power supply monitor pin and its main features LM185-1.2/285-1.2/385-1.2

Published:2011/8/29 2:48:00 Author:Seven | Keyword: regulator, power supply, monitor pin

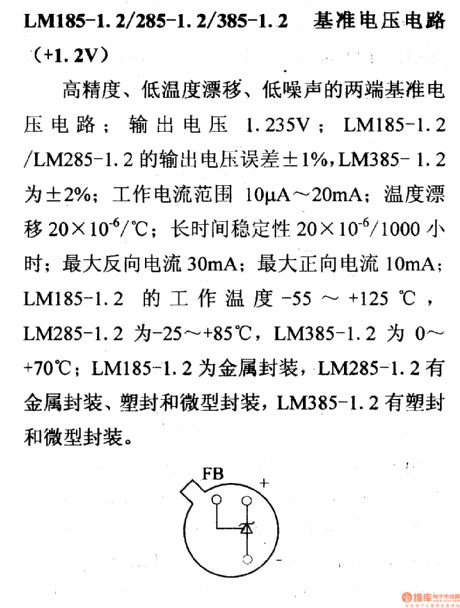

LM185-1.2/285-1.2/385-1.2--the reference voltage circuit (+1.2V)This is a 2-terminal reference voltage circuit of high-precision, low-temperature drift and low-noise; the output voltage is 1.235V; the output voltage fault of LM185-1.2/LM285-1.2 is ±1% and that of LM385-1.2 is ±2%; the working current range is 10μA~20mA; the temperature drift is 20*10-6/℃; the long-term stability is 20*10-6/1000h, the max inverting current is 30mA; the max non-inverting current is 10mA; the working temperature of LM185-1.2 is -55~+125℃.   (View)

View full Circuit Diagram | Comments | Reading(564)

The regulator: DC-DC circuit, power supply monitor pin and its main features LM1851

Published:2011/8/23 22:23:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

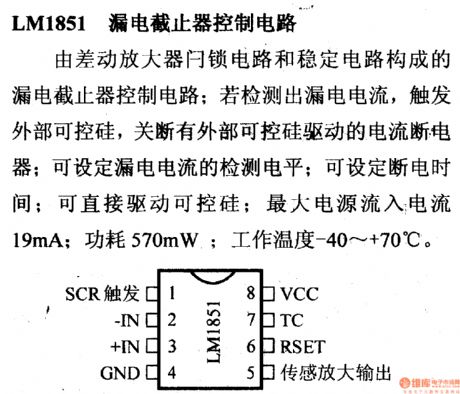

LM1851--the electricity leakage halter control circuit This is an electricity leakage halter control circuit composed of the difference amplifier lock circuit and stable circuit; if the electricity leakage is tested out, the external SCR is triggered, all the electricity halters with external SCR is cut off; the testing LEV of the leaking current can be set; the current breakdown time can be set; it can directly drive the SCR; the maximum current source input current is 19mA; the power consumption is 570mA; working temperature is -40~+70⁰C.   (View)

View full Circuit Diagram | Comments | Reading(658)

The regulator: DC-DC circuit, power supply monitor pin and its main features LM120

Published:2011/8/24 22:07:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

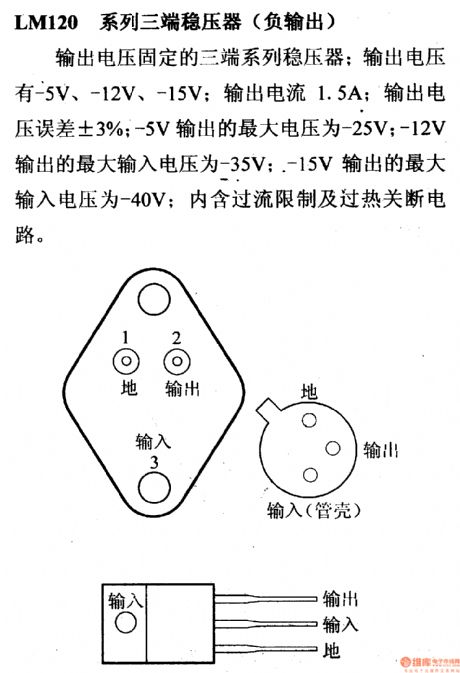

The 3-terminal stabilizer (negative output) of LM120 series This is a 3-terminal stabilizer with fixed output voltage; the output voltage can be -5V, -12V and -15V; the output current is 1.5A; the output voltage fault is ±3%; when the output is -5V, the max output voltage is -25V; when the output is -12V, the max output voltage is -35V; when the output is -15V, the max output voltage is -40V; it contains the over-current limitation and over-heat cutoff circuit.   (View)

View full Circuit Diagram | Comments | Reading(615)

The regulator: DC-DC circuit, power supply monitor pin and its main features LM117/217/317

Published:2011/8/24 22:15:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

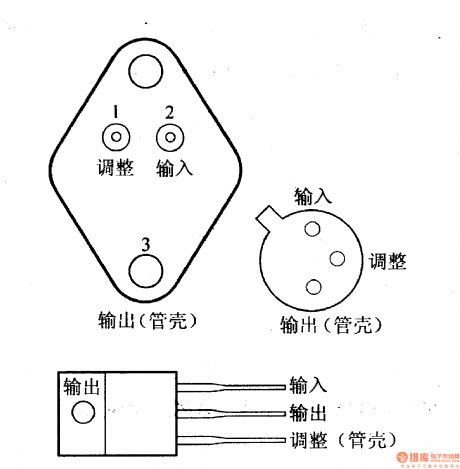

LM117/217/317--the adjustable 3-terminal stabilizer (positive output) This is a 3-terminal stabilizer with adjustable output voltage; its output voltage range is 1.2~37v; the max output current is 1.5A; the typical value of input stability is 0.01%/V; the max input-output voltage gap is 40V; it contains the current limitation, over-heat protection and secure working area protection circuit; the approximate types are μA117, μA217, μA317, SG117, SG217, SG317, CW117, CW217, CW317.   (View)

View full Circuit Diagram | Comments | Reading(1066)

The regulator: DC-DC circuit, power supply monitor pin and its main features LM150/250/350

Published:2011/8/23 22:23:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

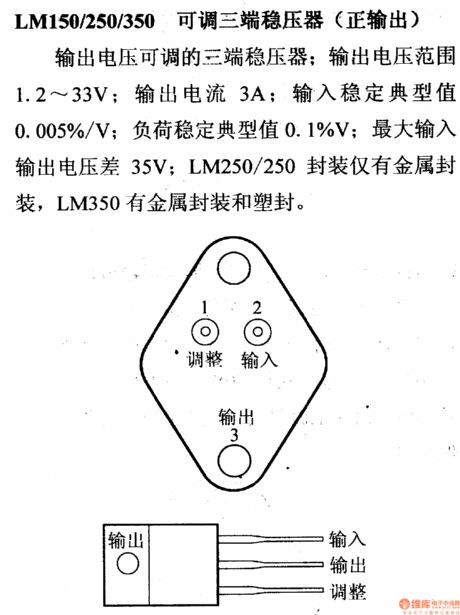

LM150/250/350--the changeable 3-terminal regulator (forward output) This is a 3-terminal regulator whose output voltage is adjustable; its output voltage range is 1.2~33V; its output current is 3A; its input stable typical value is 0.005%/V; its load stable typical value is 0.1%V; the maximum input-output voltage difference is 35V; LM250/250 is only packaged in metal package, LM350 can be packed in either metal or plastic package.   (View)

View full Circuit Diagram | Comments | Reading(889)

The regulator: DC-DC circuit, power supply monitor pin and its main features LM123/223/323

Published:2011/8/24 21:59:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

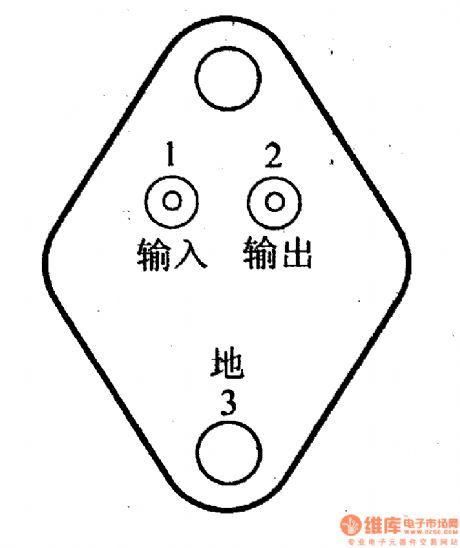

LM123/223/323--the 5V stabilizer This is a stabilizer with fixed output voltage; the output voltage is 5V; the output current is 3A; the typical value of its output impedance is 0.01Ω; the max input-output voltage difference 20V; the power consumption is 30W; it contains the current limitation, power limitation and over-heat cutoff circuit.   (View)

View full Circuit Diagram | Comments | Reading(576)

The regulator: DC-DC circuit, power supply monitor pin and its main features M51920P

Published:2011/8/28 3:00:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

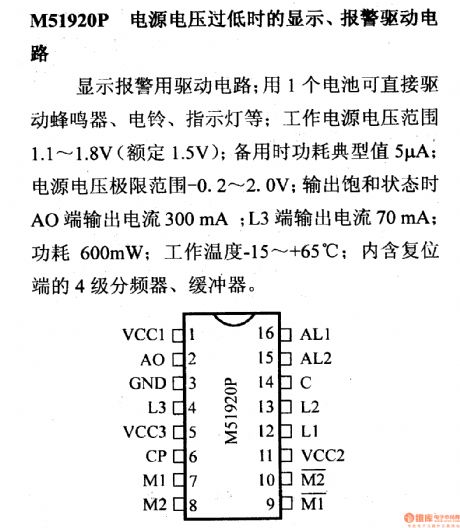

M51920P--the display and alarm drive circuit when the power supply voltage is too lowThis is a drive circuit of displaying alarm; the buzzer, ring and indicator can be driven by 1 cell; the voltage range of the working power supply is 1.1~1.8V(the regulated voltage is 1.5V); the additional power consumption typical value is 5μA; the power supply limit range is -0.2~2.0V; when the output is saturated, the output current of AO terminal is 300mA; the output current of L3 is 70mA; the power consumption is 600mW; the working temperature is -15~+65℃; it contains the 4-stage frequency distributor and buffer of the reset terminal.   (View)

View full Circuit Diagram | Comments | Reading(569)

The regulator: DC-DC circuit, power supply monitor pin and its main features M5231

Published:2011/8/28 2:49:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

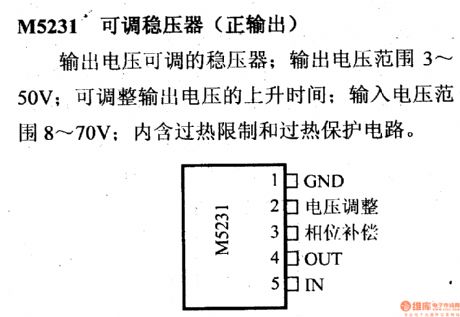

M5231--the adjustable stabilizer (positive output)This is a stabilizer whose output voltage is adjustable; the output voltage range is 3~50V; the step-up time of the output voltage can be adjusted; the input voltage range is 8~70V; it contains the over-heat limitation and over-heat protection circuit.   (View)

View full Circuit Diagram | Comments | Reading(1500)

The regulator: DC-DC circuit, power supply monitor pin and its main features M5231TL

Published:2011/8/28 2:46:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

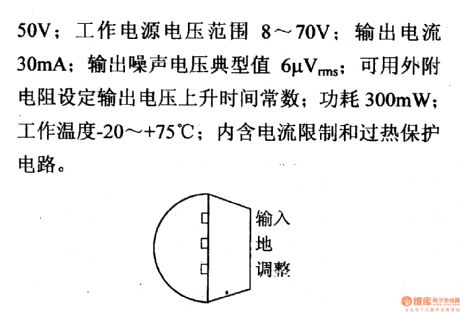

M5231TL--the adjustable stabilizer (positive output)This is a stabilizer whose output voltage is adjustable; the output voltage range is 3~50V; the voltage range of the working power supply 8~70V; the output current 20mA; the typical value of the output noise voltage is 6μVrms; the output voltage step-up time of the available external resistor is set to be a constant; the power consumption 300mW; the working temperature -20~+75℃; it contains the current limitation and over-heat protection circuit.   (View)

View full Circuit Diagram | Comments | Reading(575)

The regulator: DC-DC circuit, power supply monitor pin and its main features M5236

Published:2011/8/28 2:38:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

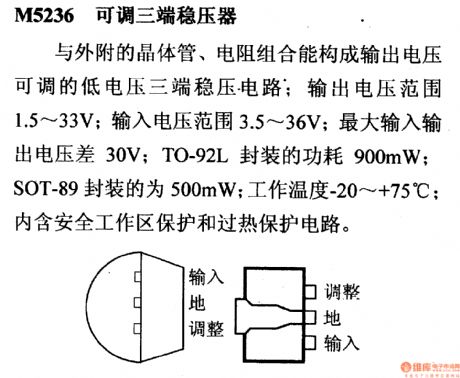

M5236--the adjustable 3-terminal stabilizerIt composes the 3-terminal regulated circuit whose output voltage adjustable with the external transistor and resistor; the output voltage range is 1.5~33V; the input voltage range is 3.5~36V; the max input-output voltage difference is 30V; the power consumption of the TO-92L is 900mW, and that of SOT-89 package is 500mW; the working temperature is -20~+75℃; in contains the secure working area protection and over-heat protection circuit.   (View)

View full Circuit Diagram | Comments | Reading(729)

The regulator: DC-DC circuit, power supply monitor pin and its main features LM113/313

Published:2011/8/24 22:24:00 Author:Seven | Keyword: DC-DC circuit, power supply, monitor pin

LM113/313--the Vref circuit (+1.22V) This is a 2-terminal Vref circuit of temperature compensation/low-noise; the breakdown voltage is 1.22V; the breakdown voltage fault is ±5%; the working current range is 0.5~20mA; the working impedance typical value in the working current is 0.3Ω; the max forward current is 50mA; the max backward current is 50mA; the working temperature of LM113 is -55~+125℃ and that of LM313 is 0~70℃.   (View)

View full Circuit Diagram | Comments | Reading(581)

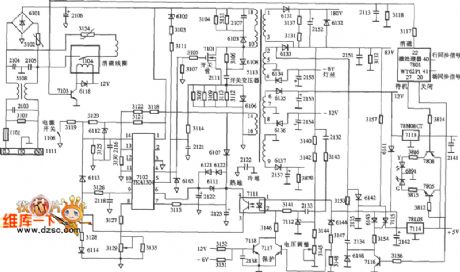

Color monitor switching power supply (TEAl504) circuit diagram

Published:2011/8/24 22:02:00 Author:Ecco | Keyword: Color monitor , switching power supply

  (View)

View full Circuit Diagram | Comments | Reading(1076)

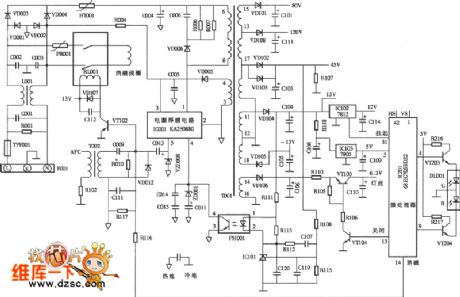

Color monitor switching power supply (KA2S0880) circuit diagram

Published:2011/8/24 22:02:00 Author:Ecco | Keyword: Color monitor , switching power supply

  (View)

View full Circuit Diagram | Comments | Reading(3168)

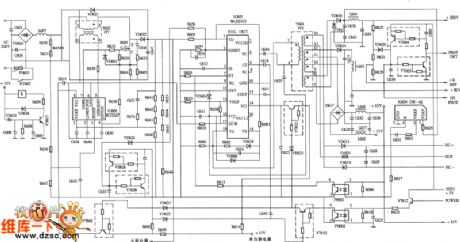

Color monitor switching power supply (MC33262p) circuit diagram
