1_KC_NOISE_FIGURE_TEST_SET

Published:2009/7/17 4:44:00 Author:Jessie | From:SeekIC

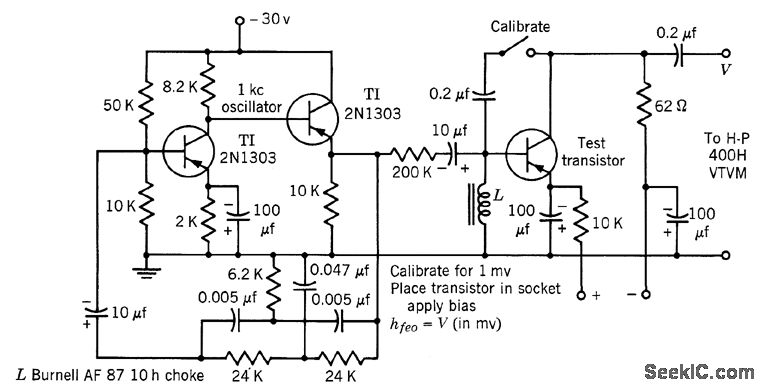

Used in measuring low-frequency Gommon-emitter short-circuit forward current transfer ratio h-feo, which is one of the parameters having greatest effect on transistor noise figure. -Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 304.
