16_V_preset_output_controller

Published:2009/7/24 3:27:00 Author:Jessie | From:SeekIC

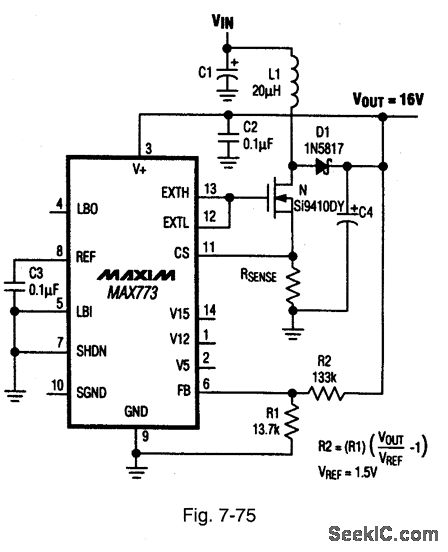

Figure 7-75 shows a MAX773 connected to provide 16-V output, with a 5-V input. This circuit is boot-strapped for operation with inputs less than 5 V. See Fig. 7-68 for component suppliers. MAXIM NEW RELEASES DATA Book, 1995, P. 4-15t.
