15_volt_regulator

Published:2009/7/20 5:30:00 Author:Jessie | From:SeekIC

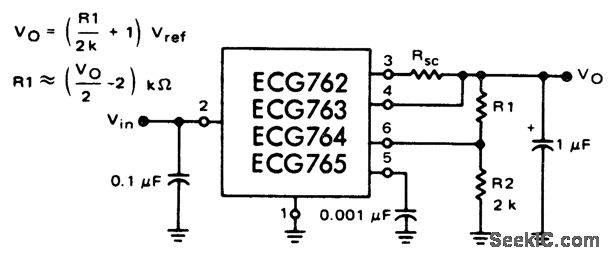

15-volt regulator. Input voltage for ECG762 and ECG763 should not exceed 38 volts and for the ECG764 and ECG765 should not exceed 22 volts (courtesy GTE Sylvania Incorporated).
