15_V_preset_output_controller

Published:2009/7/24 3:24:00 Author:Jessie | From:SeekIC

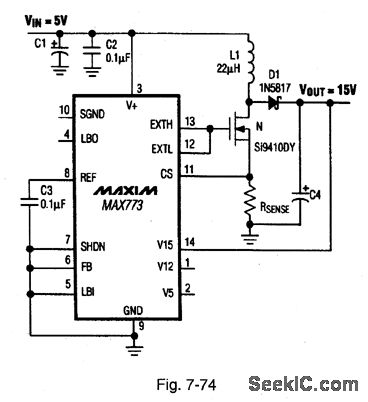

Figure 7-74 shows a MAX773 connected to provide 15-V output, with a 5-V input. This circuit is non-boot-strapped for minimum current consumption. See Fig. 7-68 for component suppliers. MAXIM NEW RELEASES DATA Book, 1995, P. 4-151.
