15_V_RECEIVER_POWER_SUPPLY_CHARGER

Published:2009/7/24 4:30:00 Author:Jessie | From:SeekIC

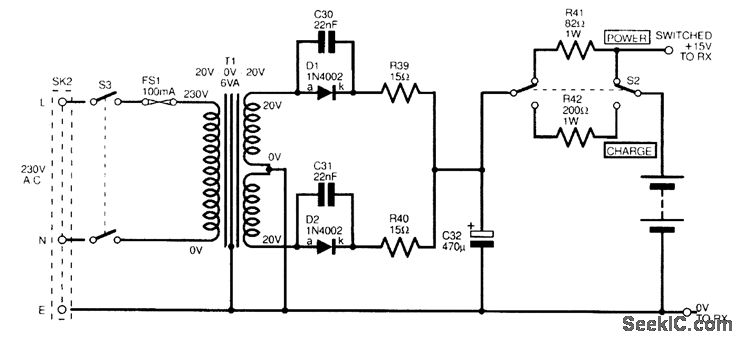

This power supply is for powering a receiver or similar load at 15 V, 100 mA. The NiCd battery pack is a 600-mAh AA cell assembly and is charged at 50 to 60 rnA. A 120-V primary transformer with the same secondary voltage can be substituted for the 230-V unit shown.
