15_A_positive_fixed_current_regulator

Published:2009/7/23 23:30:00 Author:Jessie | From:SeekIC

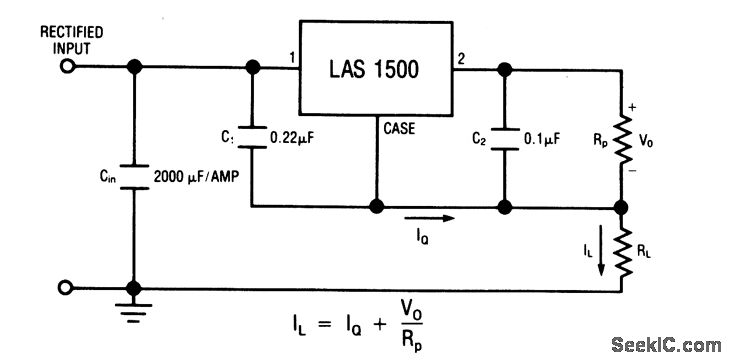

This circuit uses the LAS1500 series voltage regulator (Fig.7-32A) as a fixed-current regulator. Characteristics are shown in Fig. 7-32B, 7-32C, and 7-32D.
