15_A_positive_adjustable_current_regulator

Published:2009/7/23 23:30:00 Author:Jessie | From:SeekIC

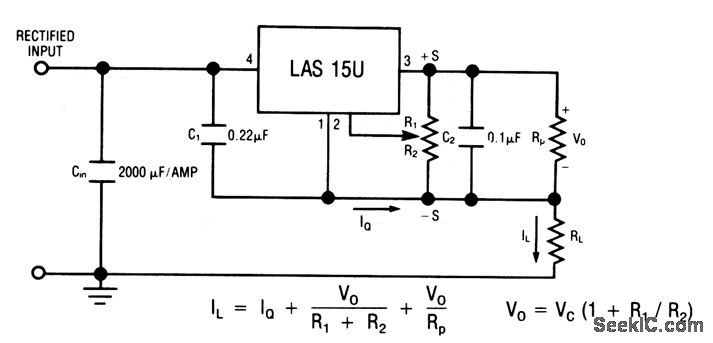

This circuit uses the LAS15AU voltage-regulator IC (Fig. 7-33) as an adjustable-current regulator. Characteristics are shown in Fig. 7-32B, 7-32C, and 7-32D.
