15_A_negative_adjustable_current_regulator

Published:2009/7/23 23:45:00 Author:Jessie | From:SeekIC

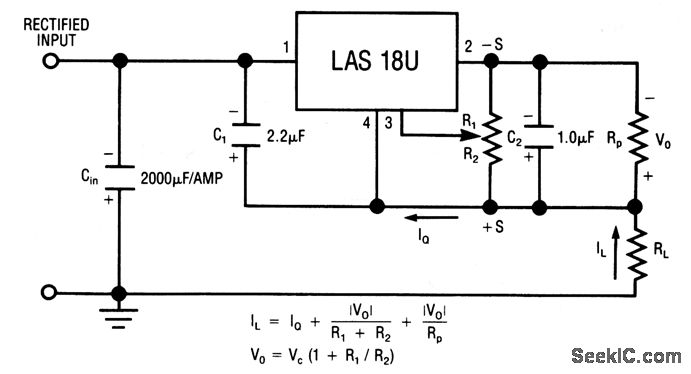

This circuit uses the LAS18U voltage-regulator IC (Fig.7-43) as an adjustable-current regulator. Characteristics are shown in Fig. 7-42B, 7-42C, and 7-42D.
