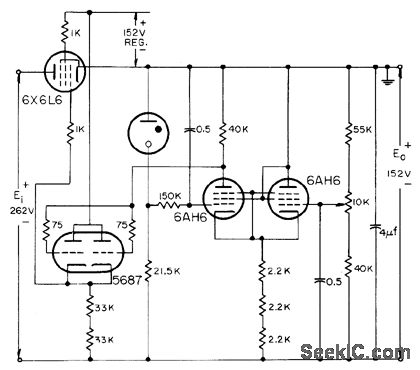

152_V_PENTODE_SERIES_TUBE_REGULATOR

Published:2009/7/20 7:11:00 Author:Jessie | From:SeekIC

Has excellent frequency response, but this performance could also be obtained if cath. ode follower were amplifier using negative feedback for frequency compensation, dong with better regulation and lower d-c resislance.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N2-11.
