150_AND_300_V_SERIES_TUBE_REGULATOR

Published:2009/7/20 6:45:00 Author:Jessie | From:SeekIC

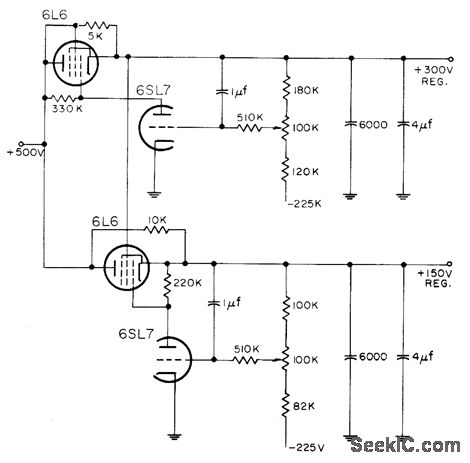

Uses simple triode as regulator amplifier. Series tube for 300.v supply is conventional triode-connected pentode, but series tube that regulates 150 v has its screen fed from output of 300-v regulated supply, for pentode operation.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N2-11.
