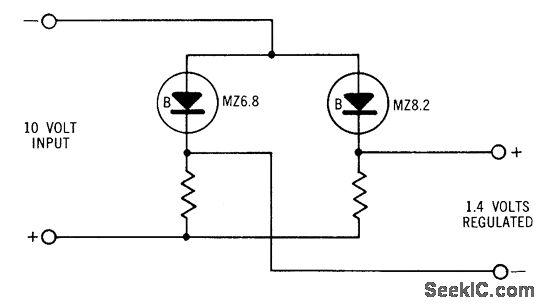

14_V_TWO_ZENER_REGULATOR

Published:2009/7/20 2:20:00 Author:Jessie | From:SeekIC

Used to deliver regulated voltage lower thon is normally available with zener diodes. Difference voltage is used for output. Gives excellent temperature compensation because both diodes tend to drift in same direction.- Zener Diode Handbook, International Rectifier Corp., 1960, p 54.
