14_KV_AND_385_V_FOR_DARK_FACE_CRT

Published:2009/7/21 5:45:00 Author:Jessie | From:SeekIC

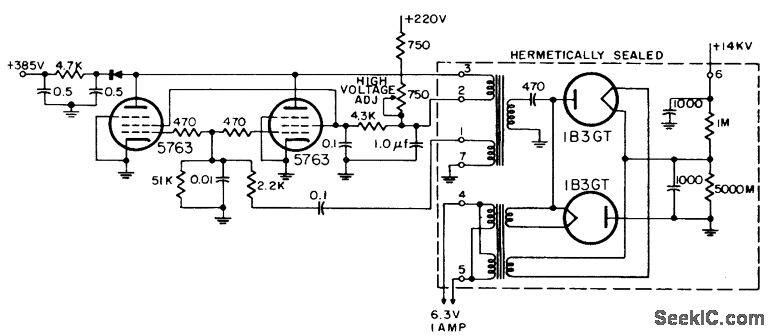

Uses two pentodes in parallel in a-f oscillator to provide sufficient power for final anode potential in oscillator-type supply.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N14-3.
