14_KV_400_CPS_CRT_SUPPLY

Published:2009/7/20 21:26:00 Author:Jessie | From:SeekIC

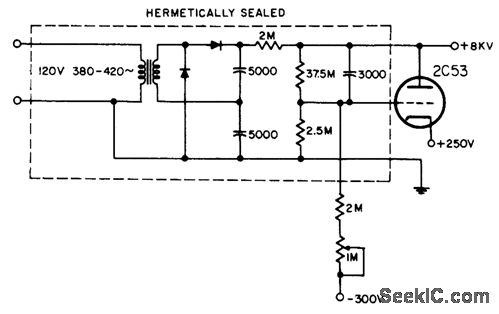

Used to power special-purpose dark-trace tube. Triode in parallel with output provides voltage regulation to overcome effects of changing line voltage, improve output ripple, and improve output impedance characteristics.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N14-1.
