13.8V 20A Power Supply Circuit

Published:2011/3/21 1:41:00 Author:Rebrecca | Keyword: 13.8V 20A, Power Supply | From:SeekIC

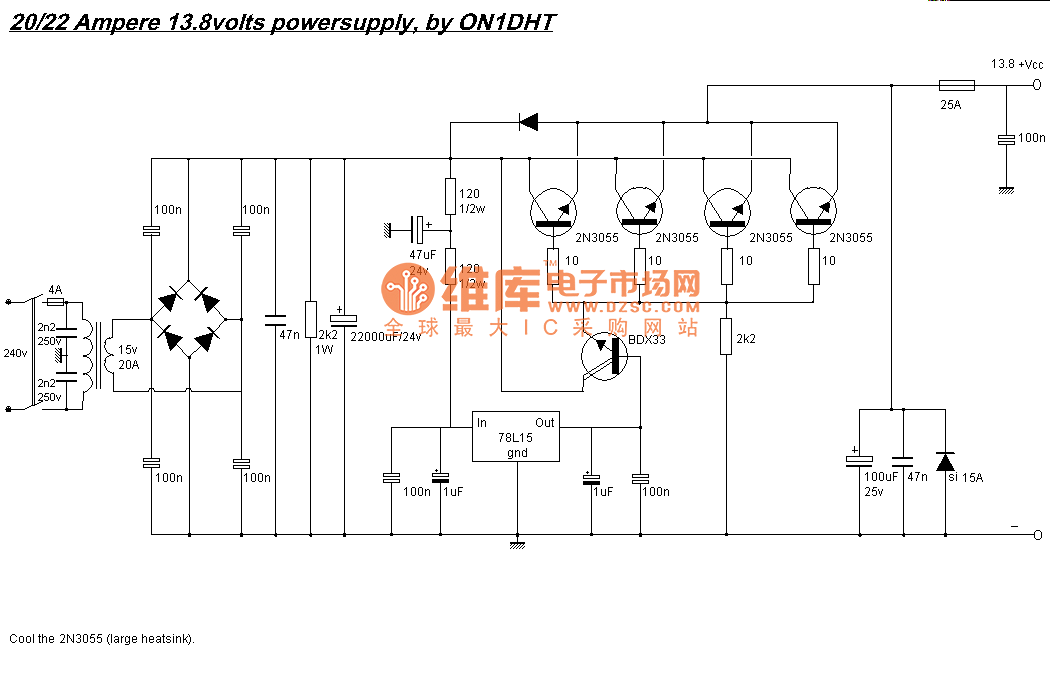

13.8V 20A power supply circuit diagram is shown as below.
