12_kW_144_MHz_AMPLIFIER_POWER_SUPPLY

Published:2009/6/18 2:04:00 Author:May | From:SeekIC

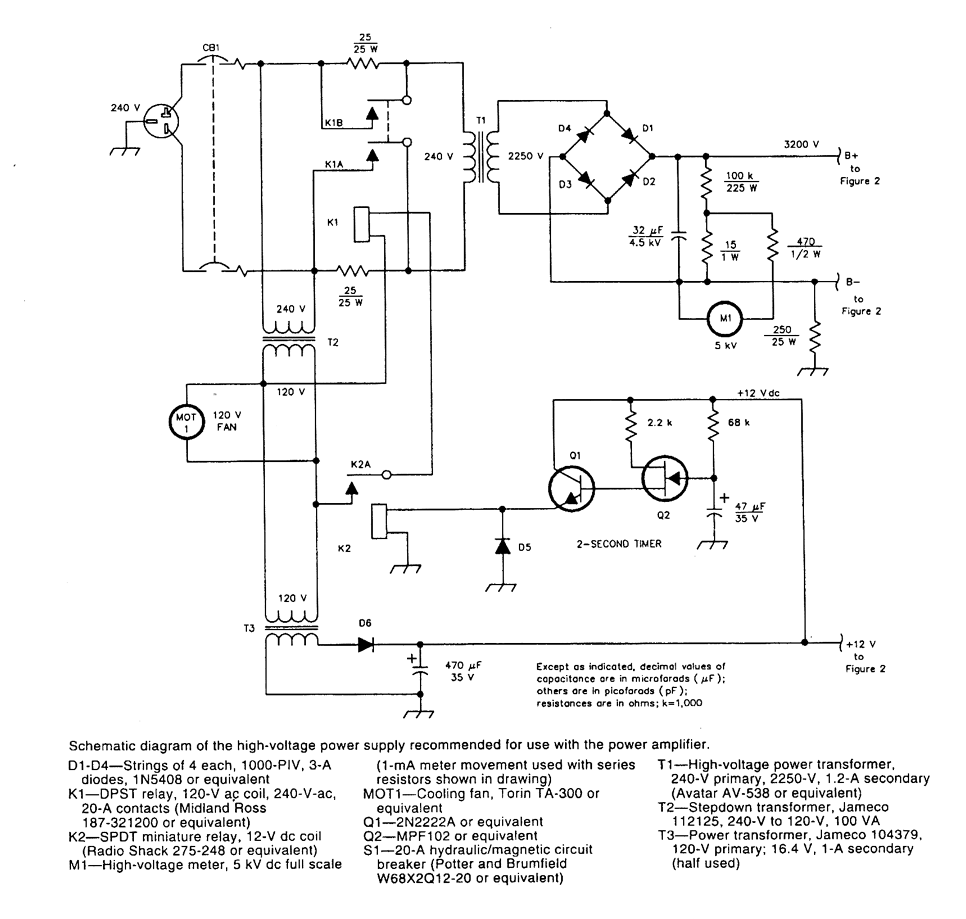

A schematic diagram of the high-voltage power supply recommended for use with the power transformer. This power supply can also be used for other equipment with similar requirements.CAUTION: hazardous high voltages.
