12_conbattery_charger_with_20_ampere_PMS_maximum

Published:2009/7/17 3:37:00 Author:Jessie | From:SeekIC

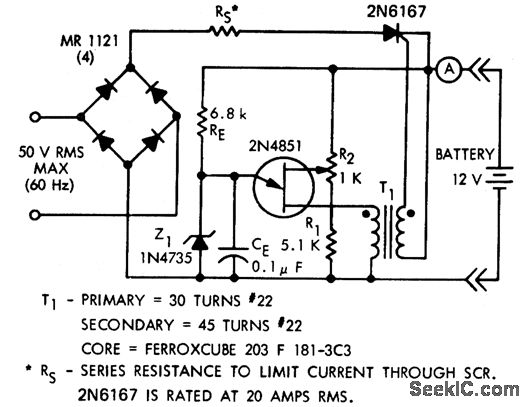

12-conbattery charger with 20-ampere PMS maximum．ms circuits a simple relaxation oscillator using a UJT,The circuit will not work unless the polarity of the battery is observed when connected(courtesy Motorola Semiconductor Products Inc.).
