12_V_high_efficiency_controller_non_boot_stmpped

Published:2009/7/24 2:13:00 Author:Jessie | From:SeekIC

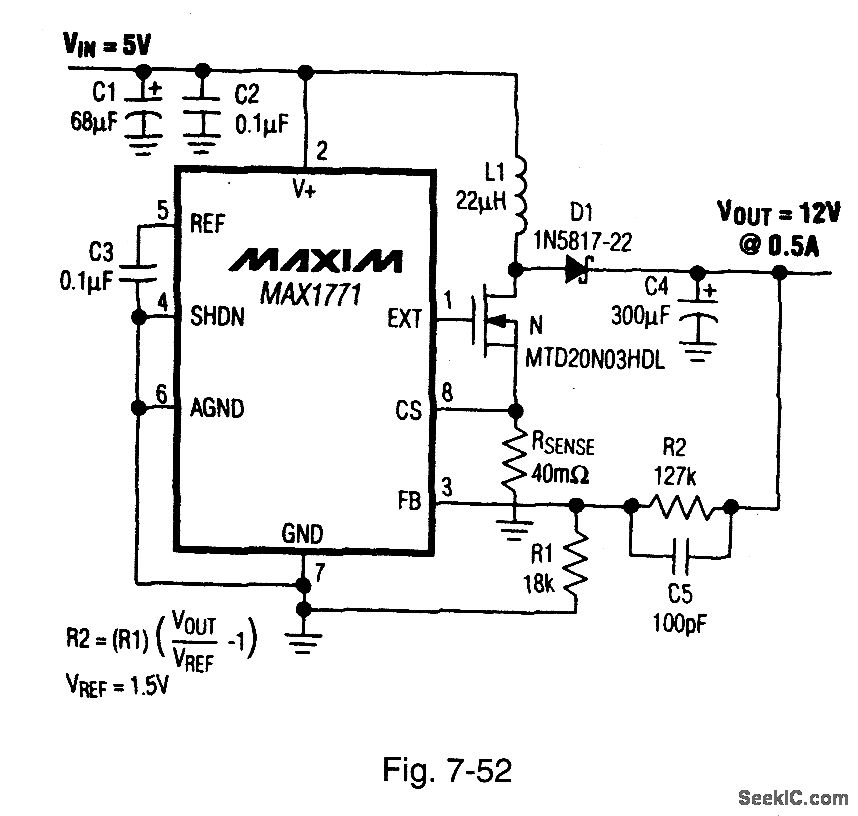

Figure 7-52 shows the MAX1771 connected to provide 12-V output at 0.5 A, with a 5-V input. See Fig. 7-51 for component suppliers. This non-boot-strapped version of the Fig. 7-50 controller requires less supply current, but with the full 5-V input. Use the Fig. 7-50 controller for input less than 5 V. Maxnvt NEW RELEASES DATA BOOK, 1995, P. 4-20.
