12_V_FOR_TRANSCEIVER_1

Published:2009/7/17 2:00:00 Author:Jessie | From:SeekIC

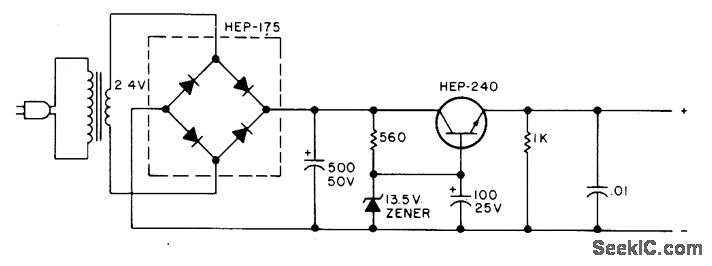

Output voltage varies only 0.2 V between transmit and receive. Transistor can be mounted directly on side of metal minibox for heatsinking. Transformer secondary is 24 V at 5 A. - Circuits, 73 Magazine, March 1977, p 152.
