12_V_D_C_REGULATOR

Published:2009/7/20 5:23:00 Author:Jessie | From:SeekIC

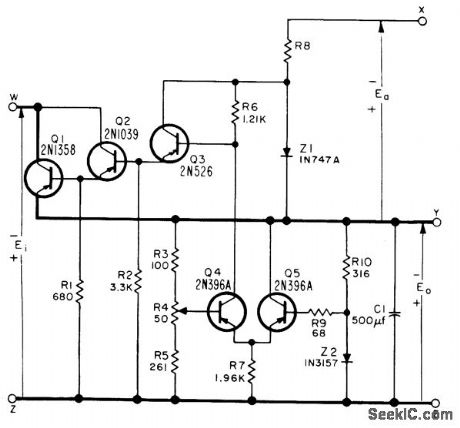

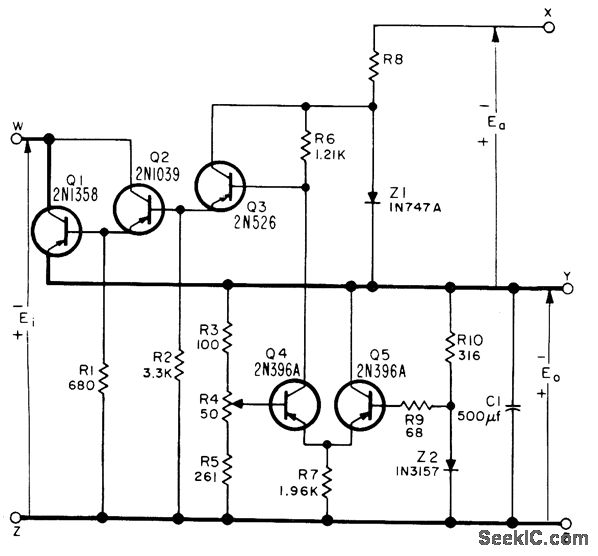

Provides up to 3 amp at 12 v with 1% regulation for inputs of 13 to 50 v from unregulated source. Auxiliary source Ea must be minimum of 5 v.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 11, Semiconductor Device Circuits, PSC 2, p 2-4.
