12_AND_5_V

Published:2009/7/16 21:57:00 Author:Jessie | From:SeekIC

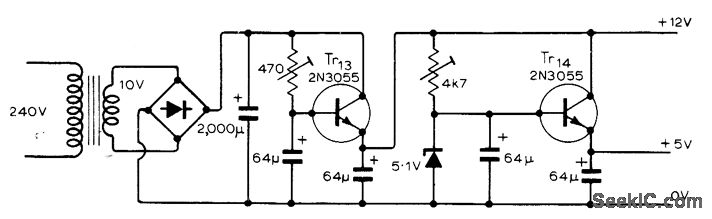

Used with multiple photographic development timer to provide 12 V at about 5mA and 5 V at about 300mA for logic, control, and audible alarm circuits.-R. G. Wicker, Photographic Development Timer, Wireless World, April 1974, p 87-90.
