126_V_AT_3_A_1

Published:2009/7/17 2:20:00 Author:Jessie | From:SeekIC

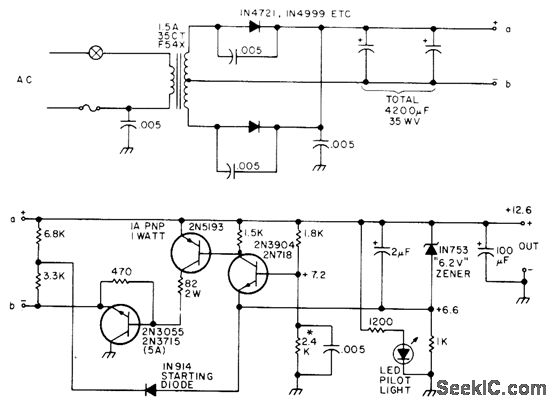

Will handle typical 15-W 2-m transceiver Short-circuit protection is provided by 82-ohm resistor Adjust value of resistor marked 2.4K to give desired output voltage Transformer secondary is nominally 35 V center-tapρed at 1.5 A Output capacitor can be tantalum-slug electrolytic with any value above 10 μF.-H. H. Cross, The Chintzy 12, 73 Magazine, Feb. 1977, p 40-41.
