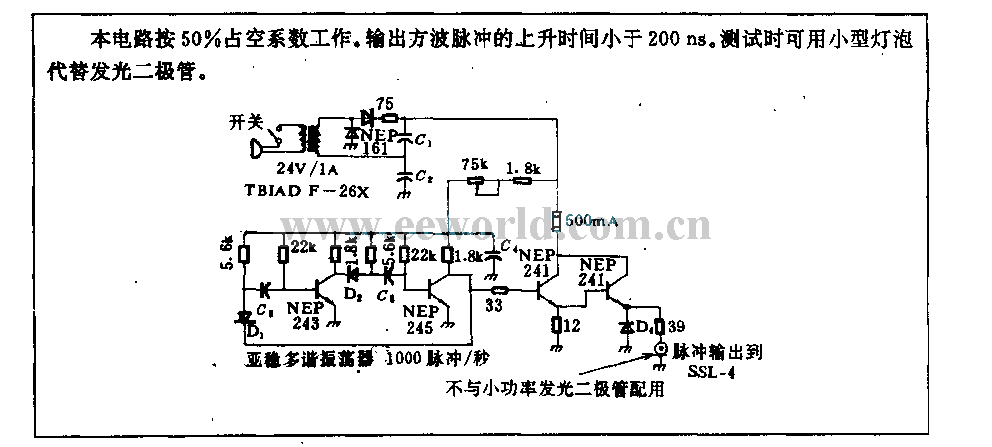

1.25W pulse occurring circuit used by LED

Published:2011/4/1 23:02:00 Author:Nicole | Keyword: pulse occurring circuit, LED | From:SeekIC

This circuit works with 50% duty cycle. The rise time of output square-wave pulse is lower than 200ns. It can use miniature lamp instead of LED to test.
