120_WATT_D_C_D_C_CONVERTER

Published:2009/7/21 5:53:00 Author:Jessie | From:SeekIC

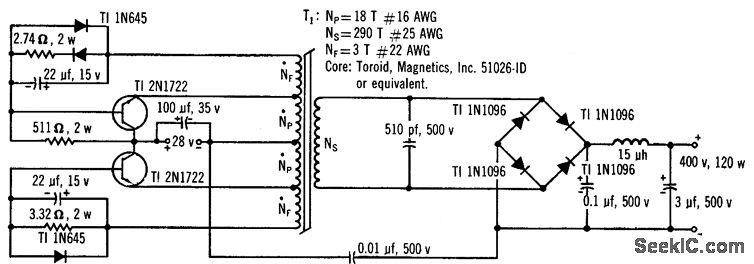

Circuit boosts 28 V d-c input to 400 V d-c with 85% efficiency, drawing 5 amp and operating at 10 kc.-120-Watt D-C/D-C Converter Operates From -55° to +125℃, Electronics, 36:2, p 15.
