10_W_CW_TRANSCEIVER_POWER_SUPPLY

Published:2009/7/24 3:34:00 Author:Jessie | From:SeekIC

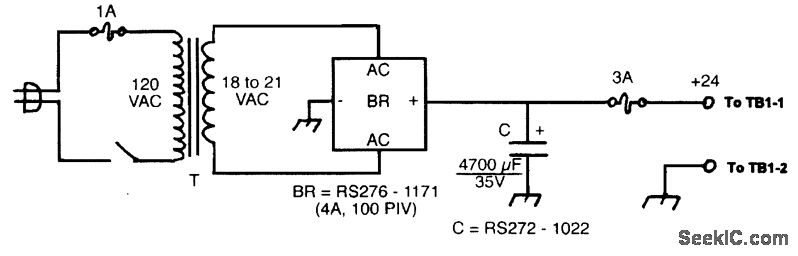

This power supply delivers about 24 Vdc at 1 A and was originally used for supplying power to a 10-W CW ham rig.
