10_V_WITH_MODERATE_DRIFT

Published:2009/7/15 22:10:00 Author:Jessie | From:SeekIC

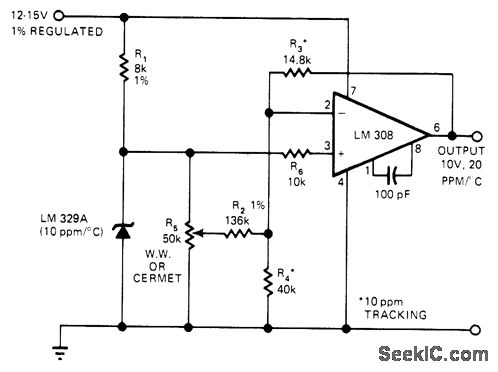

Suitable for A/D converter applications in which output voltage can drift as much as 20 PPM/℃. Temperature-drift error is divided equally between zener and amplifier, permitting use of moderately low-drift components.-R. C. Dobkin, Don't Forget Reference Stability When Designing A-to-D Converters, EDN Magazine, June 20, 1977, p 105-108.
