10_V_MICROPOWER

Published:2009/7/15 21:13:00 Author:Jessie | From:SeekIC

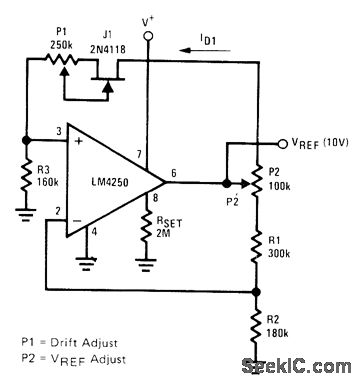

Low-drift voltage reference has standby current less than 100 μA, using LM4250 opamp to convert zero-temperature-coefficient current to desired reference voltage output. Adjust Pl for low output tem-perature coefficient, and adjust P2 for exact reference desired.- Linear Applications, Vol. 2, National Semiconductor, Santa Clara, CA, 1976, LB-34.
