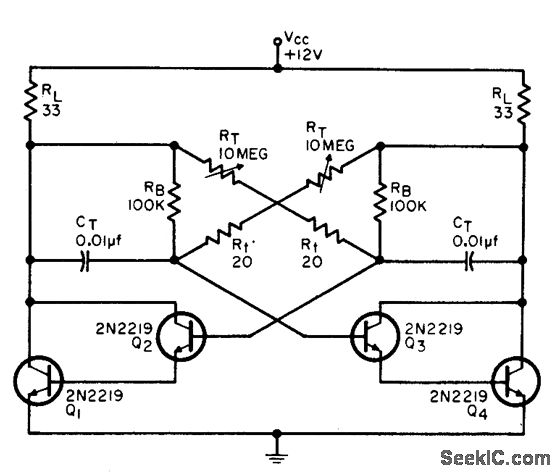

100_CPS_TO_1_MC_ASTABLE

Published:2009/7/16 13:08:00 Author:Jessie | From:SeekIC

Gives frequency change of 10,000 with reasonably good linearity over most of operating range. Two parts of timing cycle can be varied independently over wide range.-W. J. Mattox, A Versatile, Very-Wide Range Multivibrator, EEE, 13:7, p 59-61.
