10000_V_WITH_ZENER

Published:2009/7/15 22:17:00 Author:Jessie | From:SeekIC

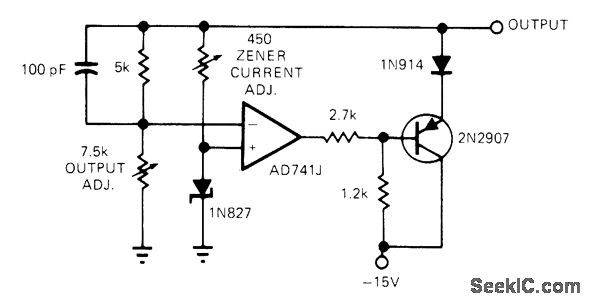

Circuit provides stable current biasing of zener and adjustable output voltage by bootstrapping excitation current off output voltage. Commercial version of circuit (Analog Devices AD2700) achieves temperature drift of only 3 PPM/℃.-J. Williams, Don't Bypass the Voltage Reference That Best Suits Your Needs, EDN Magazine, 0ct. 5, 1977, p 53-57.
