_LINE_CURRENT_MONITOR

Published:2009/7/8 1:39:00 Author:May | From:SeekIC

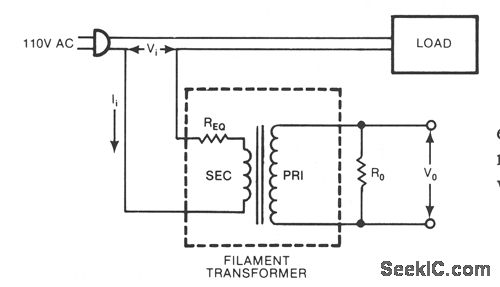

A low-cost ftlament transformer provides a linear indication of the load current in an ac line. This method causes a slight series voltage drop over a wide range of load currents.
